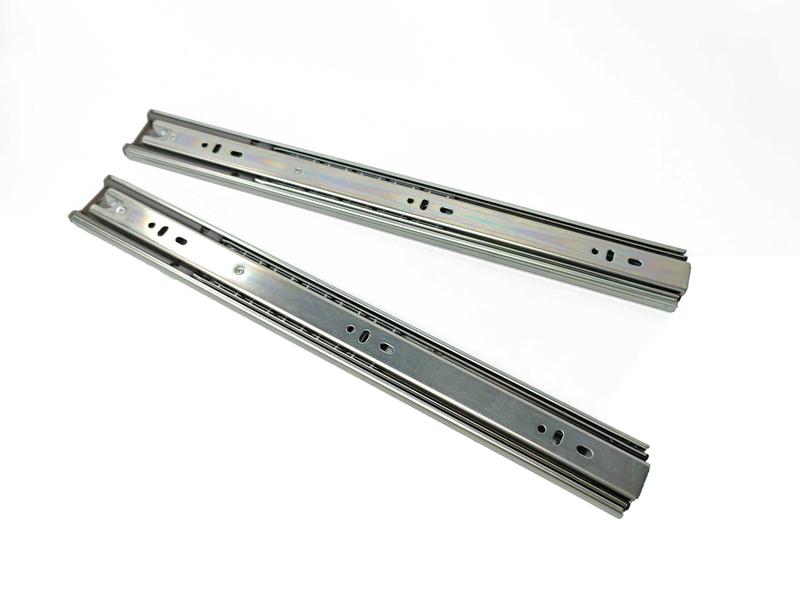

45-WF 45mm 3 Fold push open ball bearing drawer slide

  • Detail
  • Parameters

Three section full extension design allows drawers to open without the need for handle installation. Silent closure buffer with dual-function rebound cushioning



Product name
45-WF
Material
Cold-Rolled Steel
Thickness
1.0*1.0*1.2mm OR 1.2*1.2*1.5mm
Width
45mm
Long
Please refer to the size chart below.
Load-bearing capacity
35KG
Color
Galvanized(Zinc) or Black
Customization
Support OEM and ODM designs
Certificate
SGS certificate
Durability
Tested for 50,000 cycles
Function
Soft close Push open
Packing
2piece/set   15set/carton
